# Specifications for the Speakers integrated in SMARTFONES

The audio signal is a standard audio quality, like in regular consumer headphones. Here are the specifications of the speaker that is integrated with SMARTFONES:

- Speakers: 40 mm
- Impedance: 32 Ohms
- Sensitivity: 118 dB ± 3 dB

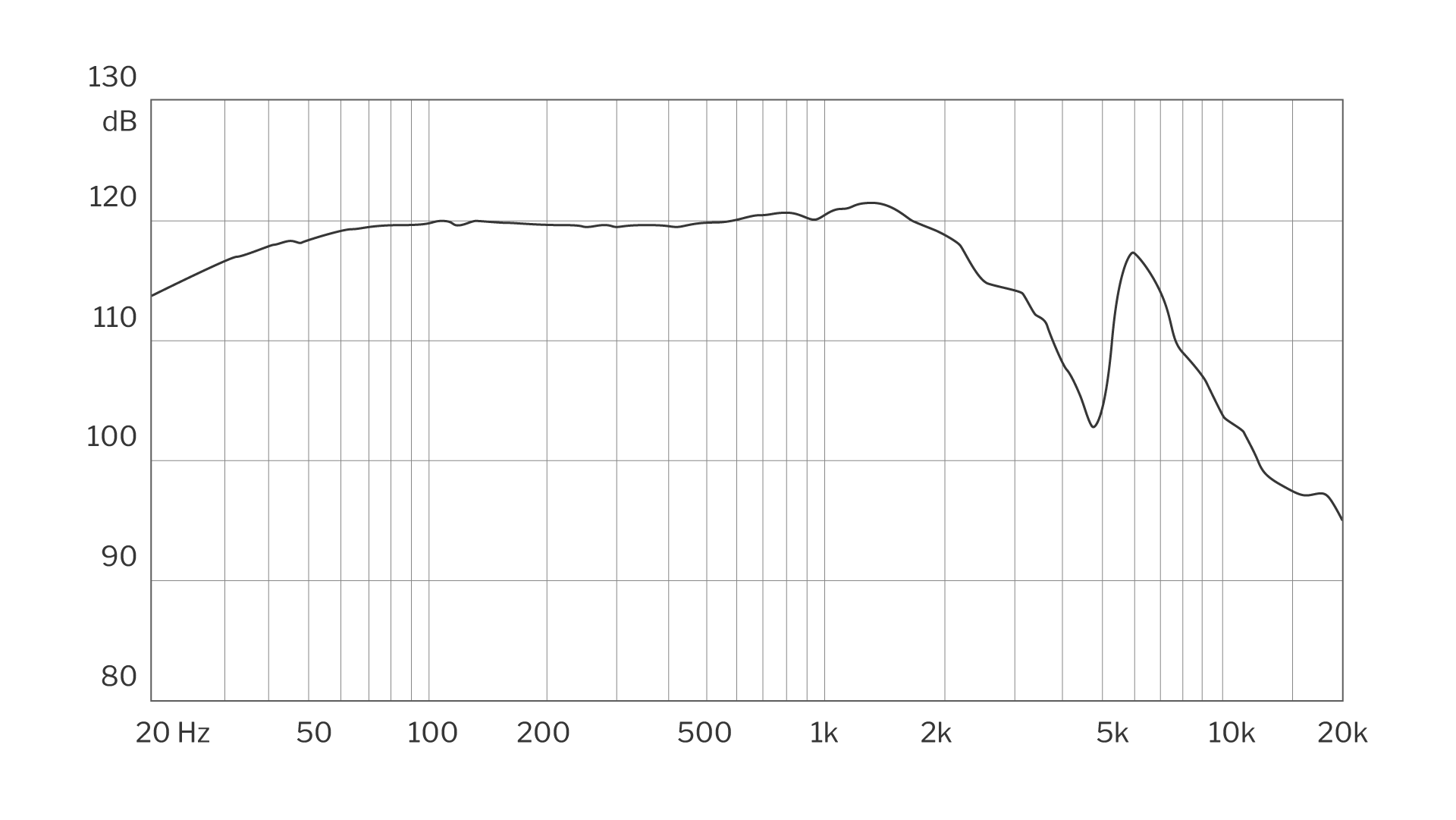

- Frequency Response: 20 Hz - 20 kHz (see below - frequency response function):

![](https://support.mbraintrain.com/hs-fs/hubfs/Specifications%20about%20the%20speaker%20integrated%20with%20the%20SMARTFONES%20system%20()_freq-response-graph_02-png.png?width=1920&height=1081&name=Specifications%20about%20the%20speaker%20integrated%20with%20the%20SMARTFONES%20system%20()_freq-response-graph_02-png.png)
